LM501W Anti-Penetration PVC Vacuum thermoforming Adhesive

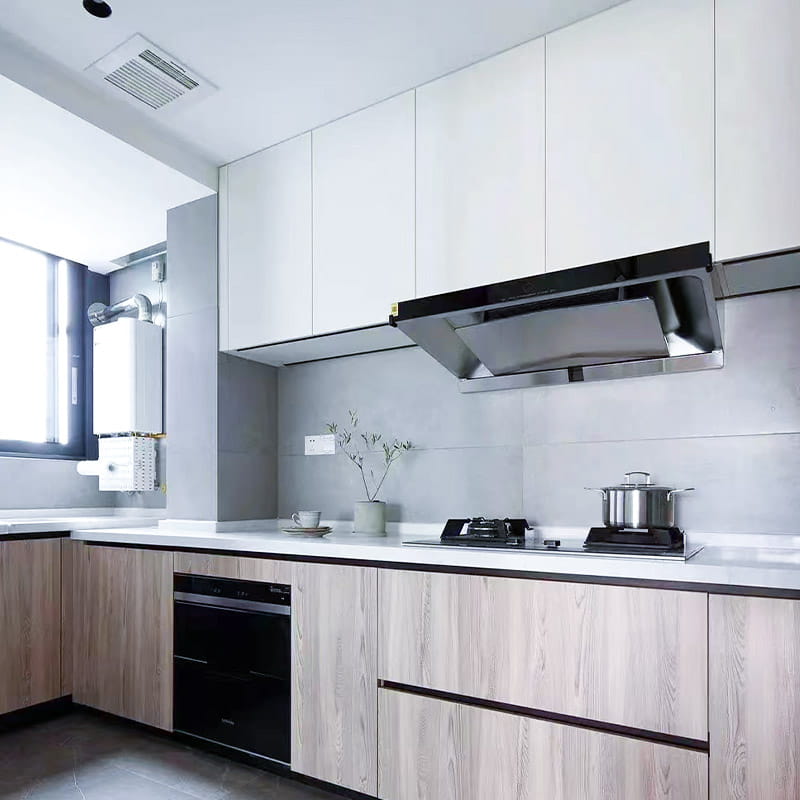

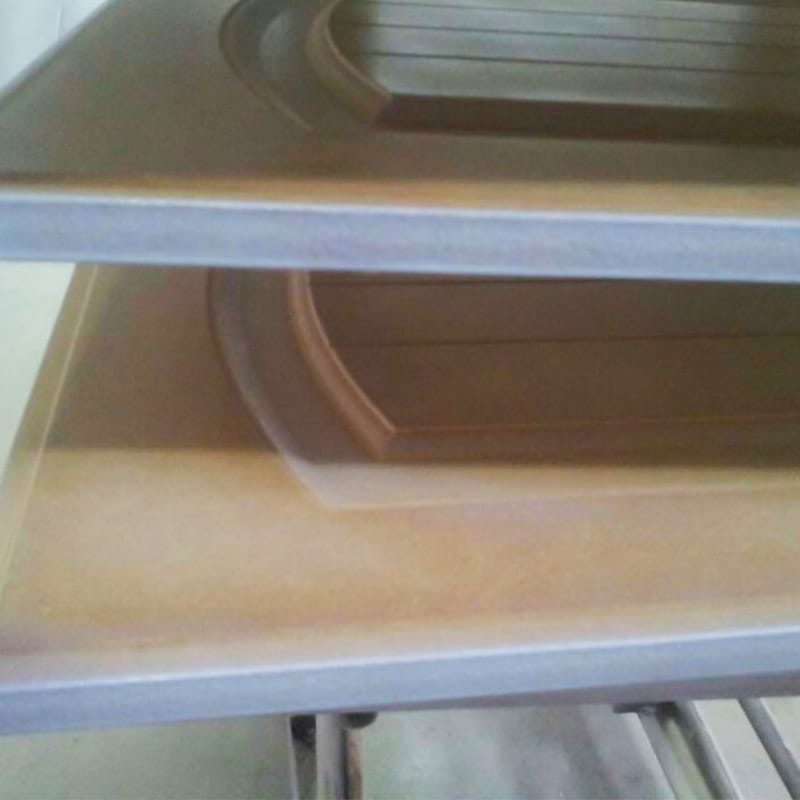

Product ApplicationPVC vacuum thermoforming adhesive, is primarily used for PVC film bonding with substrates like MDF in the production of non-painted cabinets, cabinet doors, and computer desks. Product Features(1) High solids content and viscosity(2) Anti-sagging properties(3) Fast discharge speed, excellent impermeability(4) Economical adhesive usage(5) Superior edge-sealing performance(6) Highly suitable for cabinets and thick PVC sheet vacuum forming

send inquiry

PREV:LM507 High-Gloss And Skin-Feel Film Specialty Particle-Free Vacuum Thermoforming Adhesive
NEXT:No next product

Technical Parameters

Property Values Units

Appearance White emulsion

Solid Content ≥48 %

PH Value 5-7

Viscosity 1000-3000 mPa·s

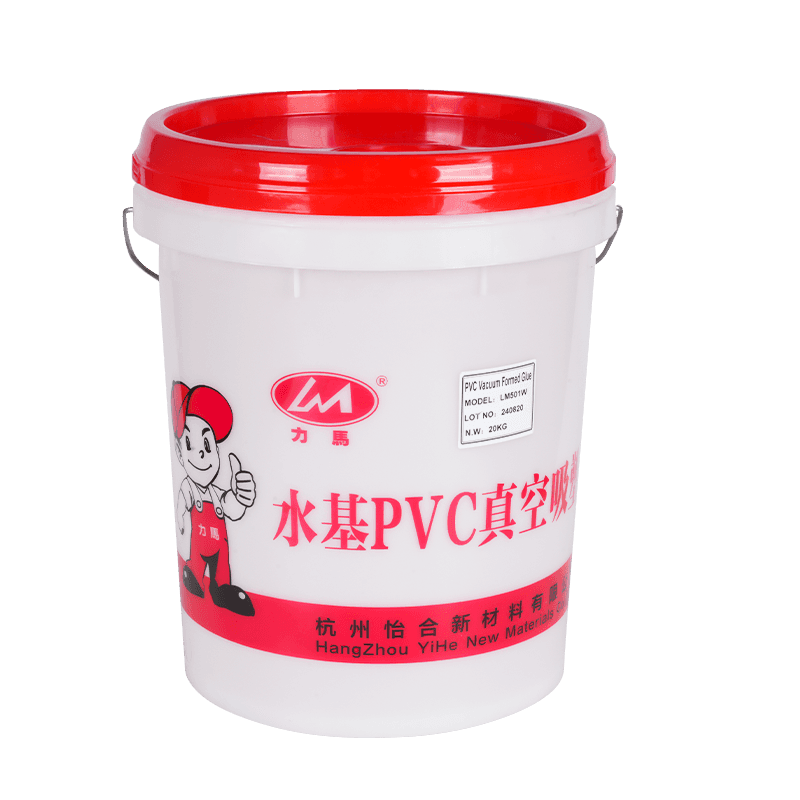

Product Packaging:
20kg Plastic Drum, 25kg Plastic Drum

Precautions
(1) Substrate Preparation: Ensure the boards are sanded and dust-free for a smooth adhesive application.
(2) Adhesive Application:
- Use a spray gun with air pressure above 7 kg and a nozzle diameter of 1.3–1.5 mm.
- Apply approximately 80 g/m² of adhesive to grooves, glass-inlay sections, and side edges. For the entire door panel surface, apply an average of 40 g/m².
- For wide-base grooves, aim the spray nozzle at the joint between the beveled edge and the base, spraying each side once to ensure uniform coverage

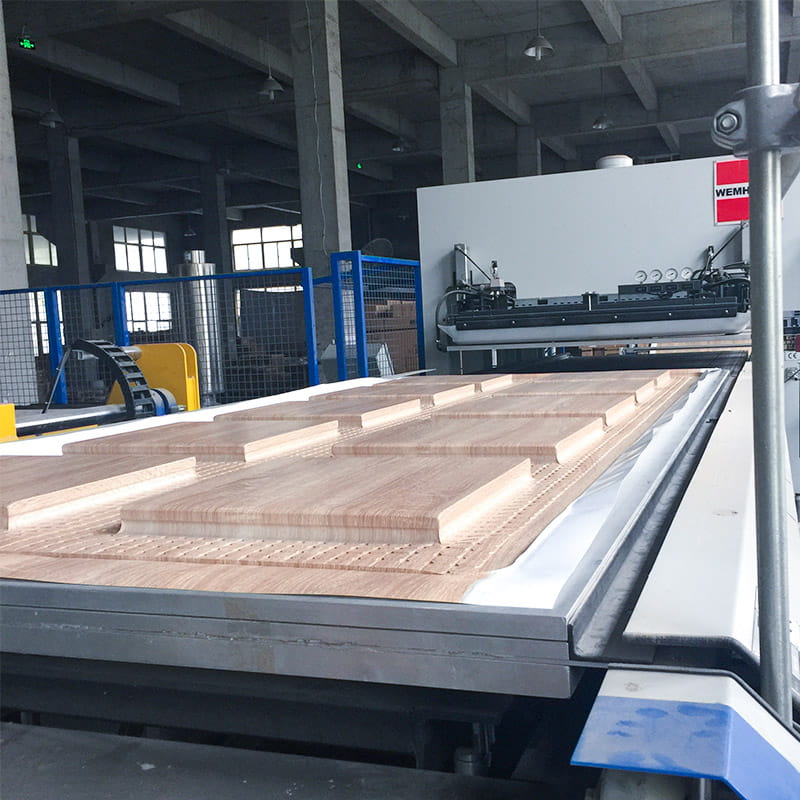

(3) Thermoforming:
- Set the equipment preheating time between 5–20 seconds, depending on room temperature.
- Vacuum forming time should be 90–120 seconds.
- Ensure the adhesive reaches a temperature above 65°C to activate fully.
This information is based on our current knowledge and experience. Since the use of different materials and changing working conditions are beyond our control, we strongly recommend that customers conduct thorough experiments and consult our technical staff. We do not accept any liability related to this information. The company reserves the right to modify the above content as necessary.
Precautions
(1) Substrate Preparation: Ensure the boards are sanded and dust-free for a smooth adhesive application.
(2) Adhesive Application:
- Use a spray gun with air pressure above 7 kg and a nozzle diameter of 1.3–1.5 mm.
- Apply approximately 80 g/m² of adhesive to grooves, glass-inlay sections, and side edges. For the entire door panel surface, apply an average of 40 g/m².
- For wide-base grooves, aim the spray nozzle at the joint between the beveled edge and the base, spraying each side once to ensure uniform coverage
(3) Thermoforming:
- Set the equipment preheating time between 5–20 seconds, depending on room temperature.
- Vacuum forming time should be 90–120 seconds.
- Ensure the adhesive reaches a temperature above 65°C to activate fully.
This information is based on our current knowledge and experience. Since the use of different materials and changing working conditions are beyond our control, we strongly recommend that customers conduct thorough experiments and consult our technical staff. We do not accept any liability related to this information. The company reserves the right to modify the above content as necessary.
